Uus Kallurauto Mercedes-Benz Arocs 4140 K 8x4 Meiller Tipper (15 units)

Additional options and accessories

• Side skirts

Remarks

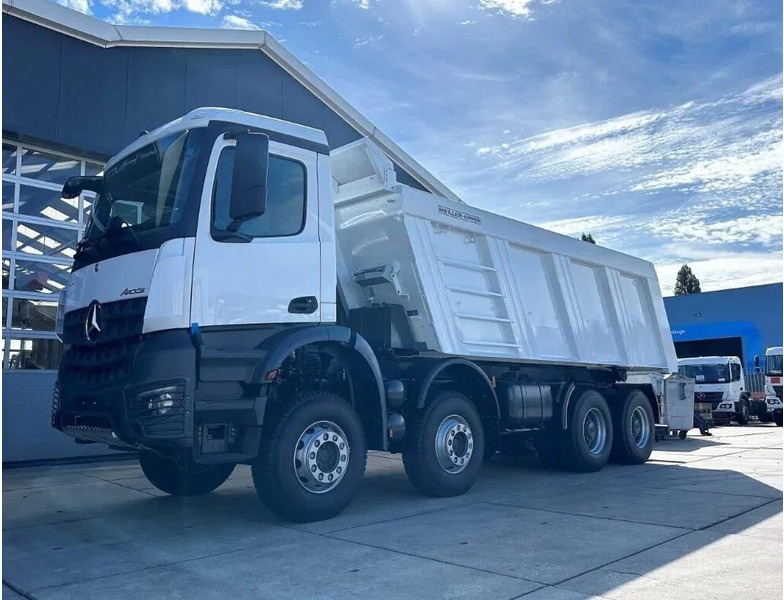

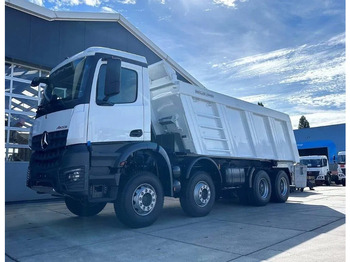

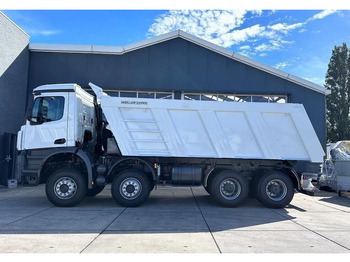

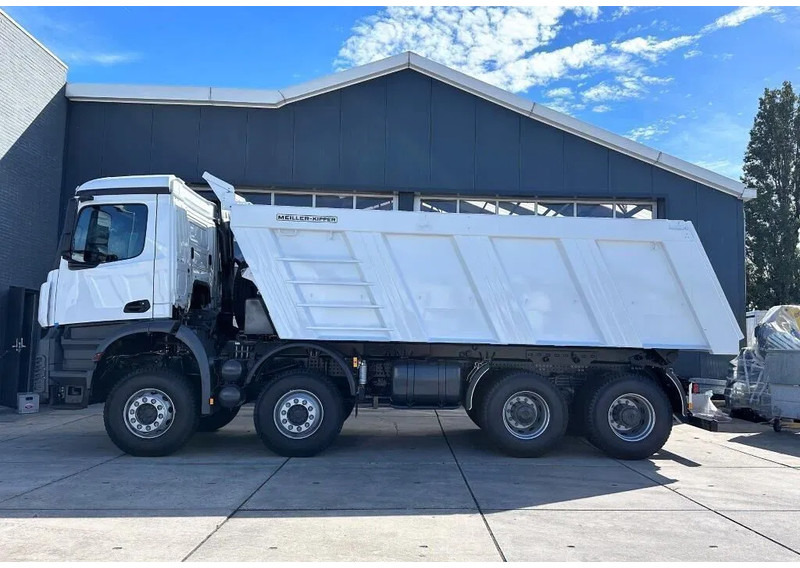

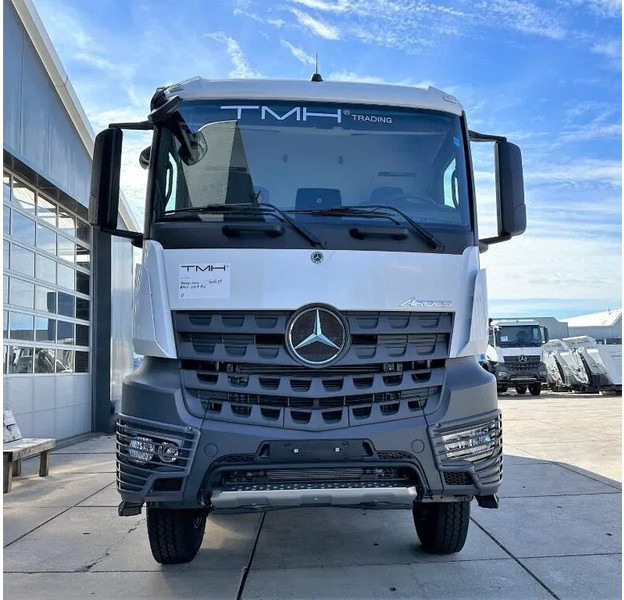

Mercedes-Benz Arocs 4140K 8x4 Meiller Tipper

The Mercedes-Benz Arocs 4140K 8x4 Meiller Tipper is a powerful, robust, and versatile tipper truck, specifically designed for heavy-duty transport in construction and mining applications. With its strong engine, high payload capacity, and reliable Meiller tipper body, this vehicle is perfectly suited for moving large volumes of soil, sand, stones, or other bulk materials.

Specifications Mercedes-Benz Arocs 4140K 8x4 Meiller Tipper:

- Drive: 8x4 configuration for optimal stability and traction.

- Maximum GVW: 41 tons, suitable for extremely heavy loads.

- Axle Configuration: Dual driven rear axles.

- Suspension: Reinforced suspension for intensive use.

- Wheelbase: Optimized for maneuverability and stability in heavy-duty applications.

- Engine: 12.8-liter inline 6 Euro 3 diesel engine, 394 hp (294 kW), 1900 Nm torque.

- Transmission: PowerShift3 automatic with off-road mode for maximum control.

- Axle Loads: 2x front axle 7.5T, 2x rear axle 13.4T.

- Clutch: Double Disc Clutch.

- Tires: 315/80 R 22.5.

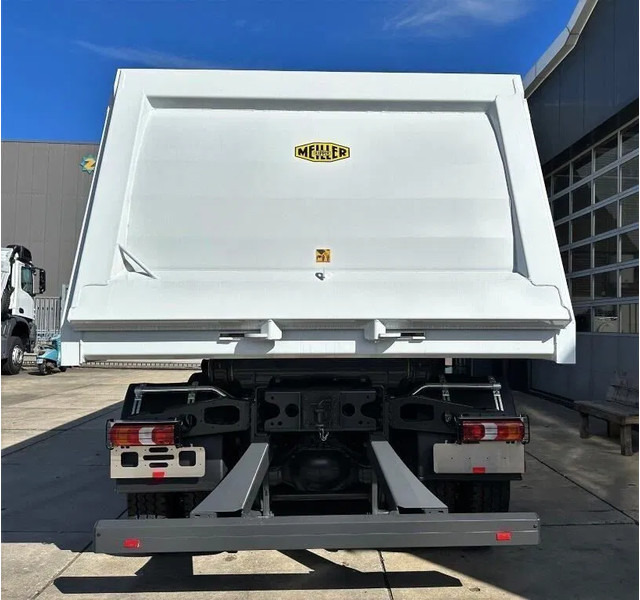

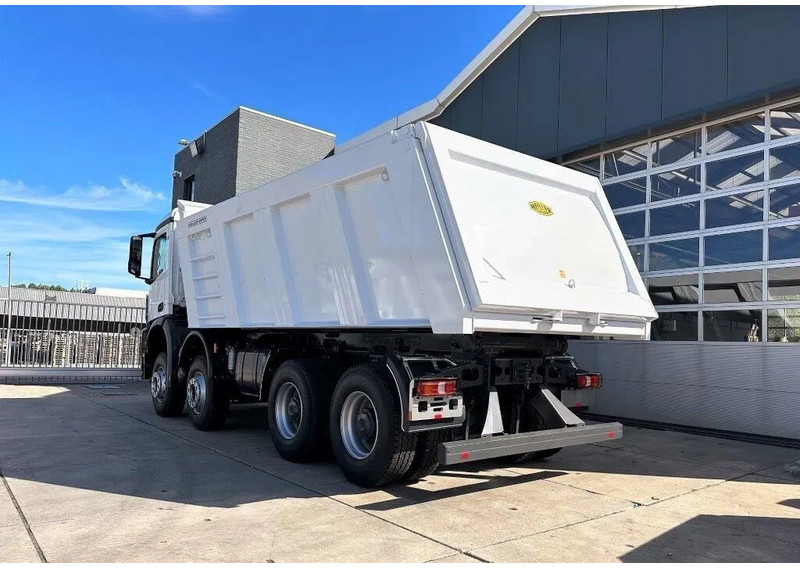

Meiller Tipper Body:

- Classic rear tipper H436, 20 cbm, HARDOX floor.

- Type: Rearward tipping body, ideal for bulk transport.

- Capacity: 20 m³ loading capacity.

- Material: Wear-resistant steel body for enhanced durability.

- Hydraulics: Meiller high-performance hydraulic system for efficient unloading.

- Safety: Automatic locking system and stabilizer bar for safe operation, even on uneven surfaces.

Advantages:

- Effortlessly transport large volumes of material with a GVW of 41T.

- The engine is engineered for efficiency, even under heavy loads.

- Rugged design and high ground clearance for off-road terrain.

- Simple and intuitive tipper control from within the cab.

Applications:

The Mercedes-Benz Arocs 4140K 8x4 Meiller Tipper is perfectly suited for:

- Construction Projects: Transporting soil, sand, gravel, or debris.

- Mining Operations: Moving heavy stones and ores.

- Infrastructure Works: Supplying materials such as asphalt and building supplies.

DIMENSIONS: L. 8282MM | W. 2500MM | H. 3700MM (WEIGHT 16,000KG)

Meiller Heritage:

Meiller tippers have been manufactured in Germany for over 170 years and are renowned for their reliability and innovation within the construction sector.

Proven in Tough Conditions:

The Arocs 4140K has been tested in the most demanding construction and mining environments — from deserts to quarries — and consistently delivers outstanding performance.

More information

Year of manufacture: 2025

Cab: day

Make of bodywork: Meiller
