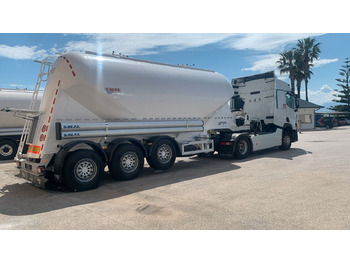

Silo poolhaagis OMEPS

Condition: New vehicle

Tank:

 Single-chamber tank made entirely of aluminum (AW

5083 PERALUMAN 45 AIMg 4.5 Mn)

 Volume 30m3 – 2 compartments

 Warranty period: 1 year from the date of delivery

 2” kingpin in accordance with standard 94/20/CE

 Country of origin: ITALY

Painting and inscriptions:

 Tank and support base completely painted in OMEPS white

 Without customer logo

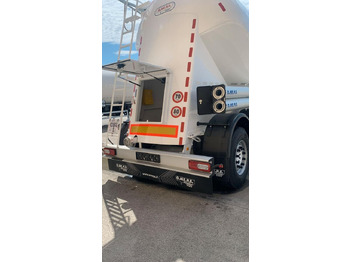

 Rear and side reflective stripes.

 O.ME.P.S. logo applied to the semi-trailer in accordance with the

manufacturing standard.

Tank operating parameters:

 Pressure tank in accordance with the EU Pressure Equipment Directive PED 2014/68/UE.

 Test pressure 2.86 bar

 Working pressure 2.0 bar

 Working temperature - 40° + 80°

Loading options:

 2 loading hatches DN450 (internal diameter 450

mm), with rotating and hinged quick-release

lids. Each hatch is sealed with 4

stainless steel bolts.

Support legs:

Control panel:

The control panel is located on the right side of the substructure and consists of:

 1 pressure gauge showing the pressure inside the tank

 1 pressure gauge showing the pressure of the air

suspensions (the second pressure gauge showing the pressure of the air

suspension is located at the top near the working

bridges)

 valve opening control

 shut-off button

 parking brake

Axles:

 3 single heavy-duty fixed axles SAF

INRАTRADISK 3x9 tons, disc brakes, diameter 430 mm

installed at a distance of 1310 mm. Offset 120 mm.

 Electronic lift of the 1st axle when unloaded

 SAF integrated air suspension with

lifting-lowering device and load pressure gauge

Brakes:

 WABCO EBS 2S/2M + RSS brake system, with

anti-lock system and separate circuits in accordance with standard 98/12/CE - ECE R13/09

 Safety brake locking system with

raised handrail

Wheels and tires:

 No. 06 steel rims measuring 11.75x22.5 offset 120mm with PIRELLI tires measuring 385/65 R

22.5
