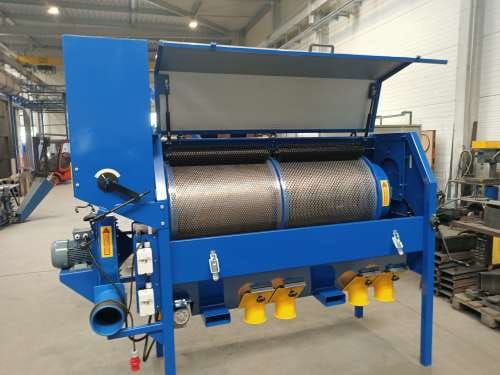

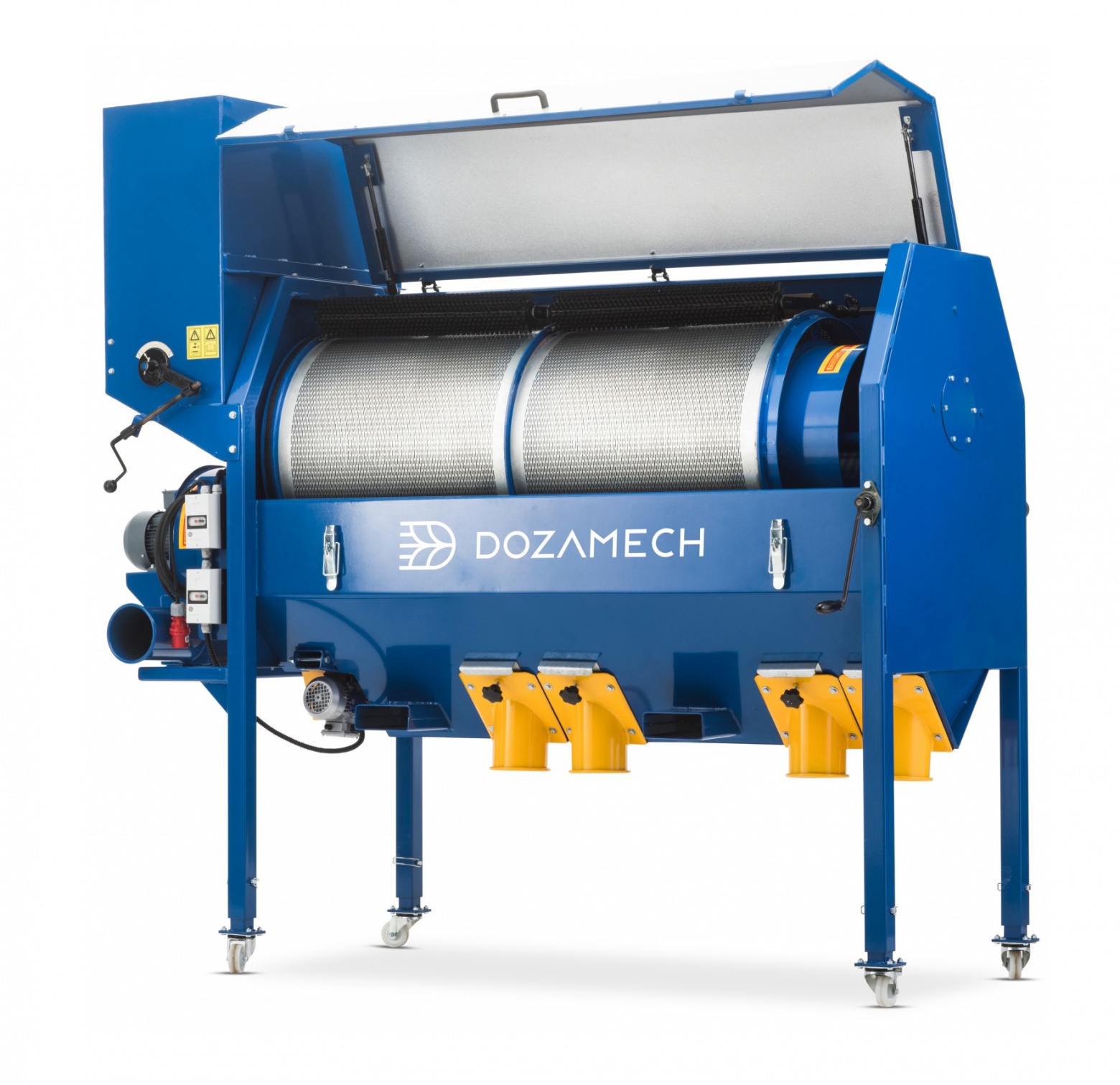

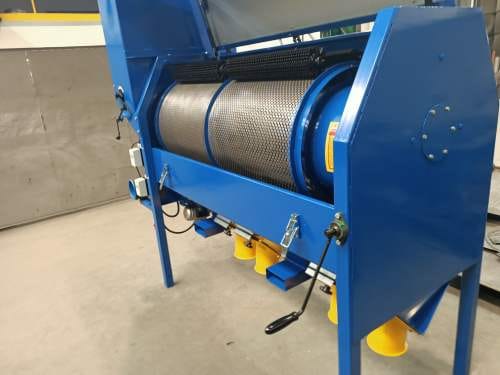

Dozamech drum cleaner for cereals

Machine for cleaning seeds: cereals, and legumes (coarse and fine) with a hopper of 100 kg capacity (wheat) with five outlets for seeds and dirt.

- Easy to operate, simple replacement of screens

- Vibration-free operation

- Energy-saving

- Compact and

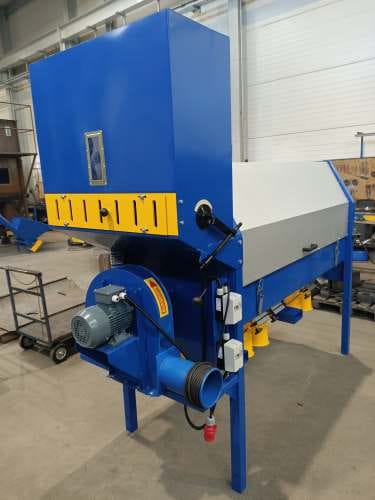

- Fan equipped with impeller with centrifugal blades, statically and dynamically balanced

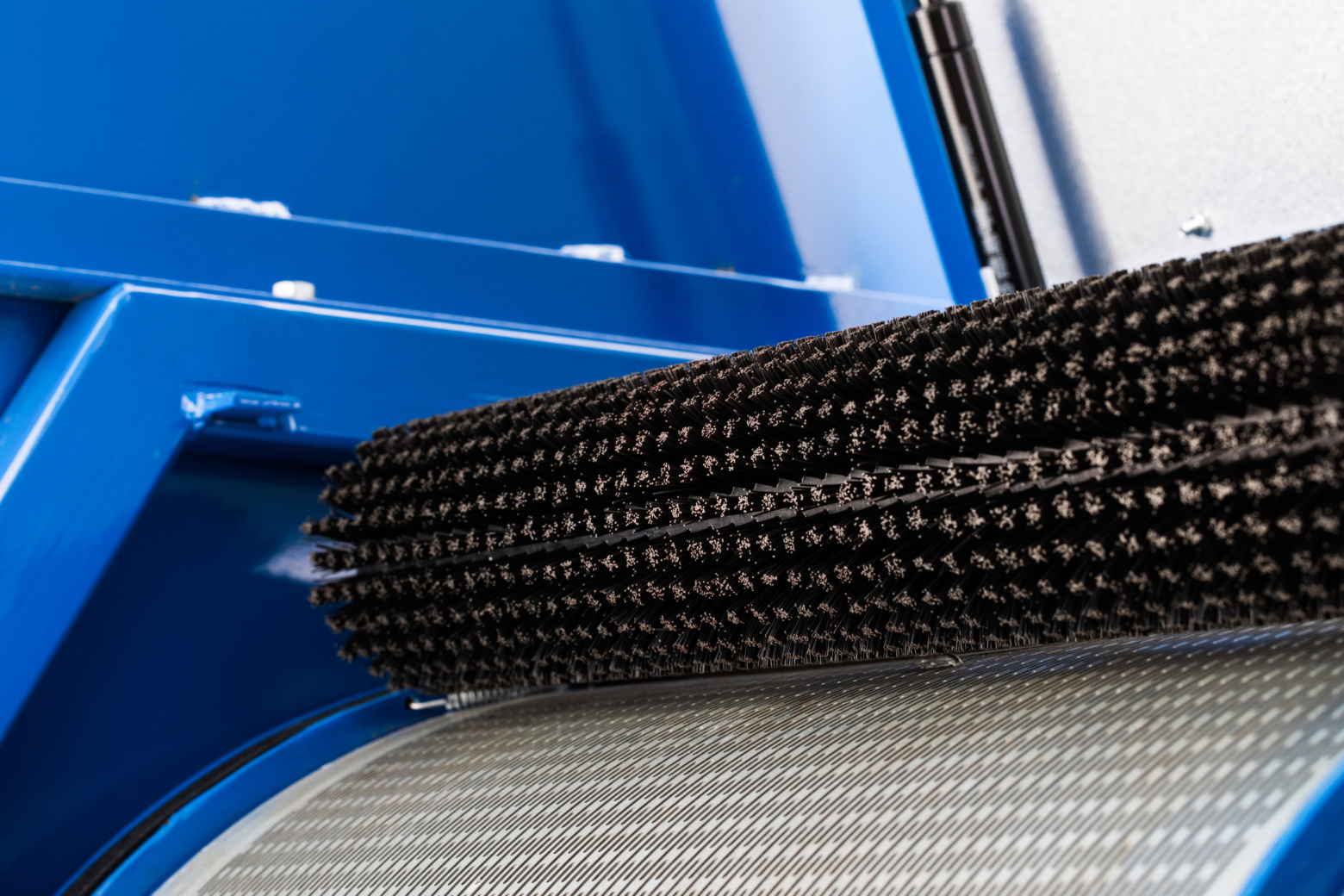

- Screens are cleaned with special rubberized rollers and brushes

Cleaning of seeds is carried out by:

- Forced air movement using a fan - cleaning from dust, chaff, and fine straw

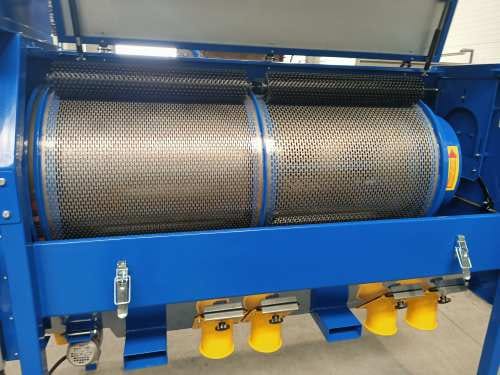

- Movement of seeds during the rotation of the drum with modular inner and outer double sieves

- cleaning from damaged seeds, clods of soil, stones

Seed cleaning capacity:

Wheat/barley/triticale/rye 3.0 - 4.0 t/hour

Oats 2.0 - 2.5 t/hour

Grasses 0.75 - 1.5 t/hour

Weight: 590 kg

Height: 2,35 m

Inner screen dimensions: 1594 x 625 mm

External screen dimensions: 2080 x 720 mm

The diameter of the inner drum mesh is 500 mm

The diameter of the outer drum mesh is 650 mm

The agitator fixed on the inner surface of the screen 4 pieces

Standard meshes:

- front inner mesh screen with round holes, Ø mm 12

- front outer mesh screen with long holes, 2.5 x 20 mm

- rear outer mesh screen with long holes 3,75 x 20 mm

Degree of protection IP 55

Thermal protection range 0.63 - 1 A

Dimensions of the front inner mesh screen mm 1594 x 625

Motor power: 1.5 + 0.18 kW
