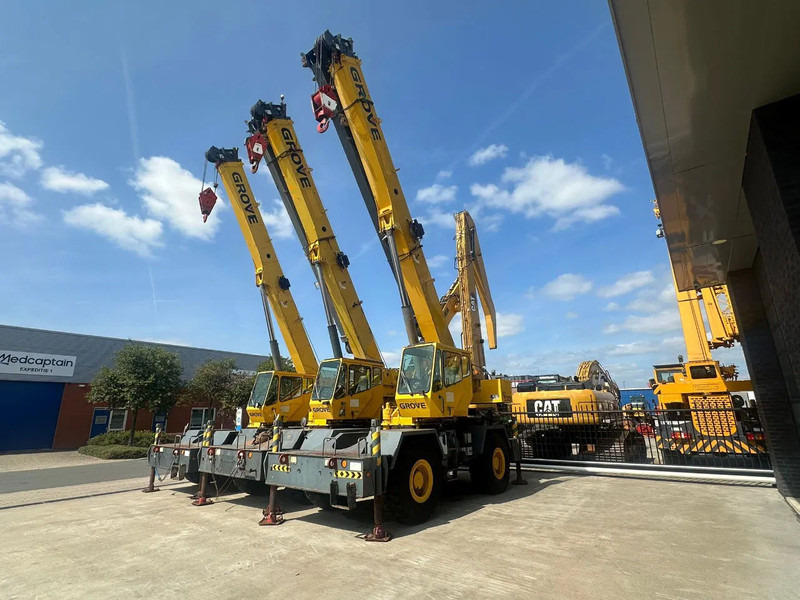

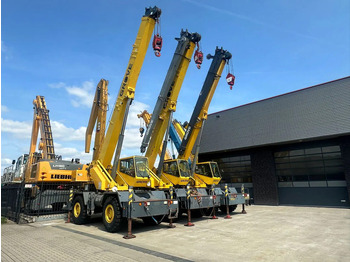

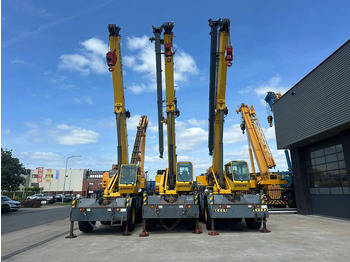

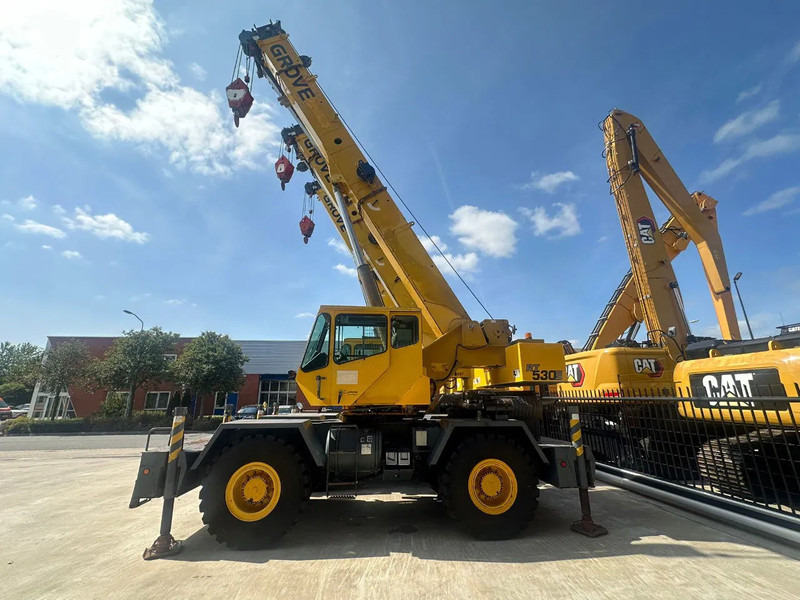

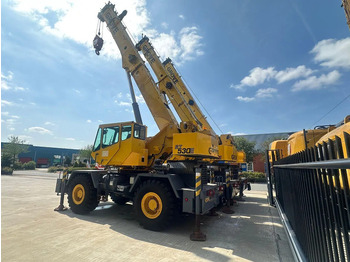

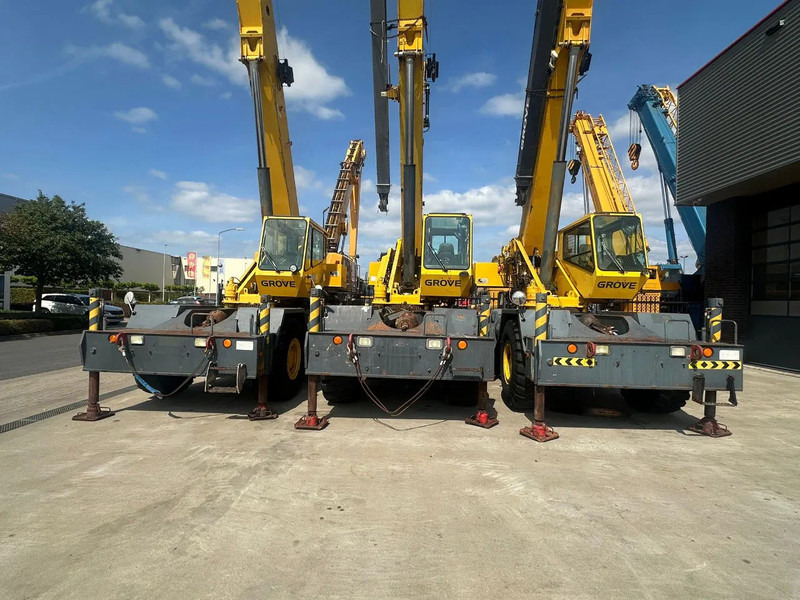

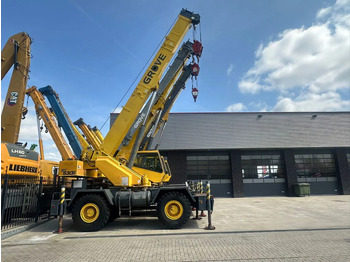

3 x GROVE RT 530E ROUGH TERRAIN CRANE

VIN: - 224775 - 223941 - 224774

Lattice Boom (Main Boom)

Material: High-grade steel alloy

Sections: 4-6 lattice sections, telescoping or fixed

Maximum Length: 26 meters (85.30 feet)

Section Dimensions:

Base section: approx. 2-3 m (6.6-9.8 ft) wide across lattice

Thickness: 12-15 mm (0.47-0.59 inches)

Lifting Capacity: Up to 30 tons at radius of 10 meters

Engine

Model: Cummins NTA 855 or equivalent

Type: 6-cylinder turbocharged diesel

Displacement: 14.0 liters (854.84 cubic inches)

Power Output: 330-360 HP at 2100 rpm

Torque: Approximately 1,300 Nm (roughly 960 lbf-ft)

Fuel Consumption: Varies depending on load (~20-30 L/hr during operation)

Emission Standards: Meets Tier 2 or equivalent standards of the time

Hydraulic System

Main Pump: Variable displacement axial piston pump

Flow Rate: Approx. 150-200 L/min (39.6-52.8 gpm)

Operating Pressure: 280-320 bar (4061-4644 psi)

Hydraulic Oil Capacity: 300-400 liters

Hydraulic Cylinders:

Boom extension/retraction: 2-4 high-capacity cylinders per section

Outriggers: Equipped with independent cylinders, approx. 50-100 liters per cylinder

Slewing: Hydraulic motor with planetary gears

Winch Assembly

Main Winch:

Drum Capacity: 200-300 meters (660-990 ft) of wire rope

Line Speed: Up to 80 m/min (262 ft/min)

Auxiliary Winch:

Capacity: 5-10 tons

Line Speed: Approx. 50-70 m/min

Outriggers

Type: Hydraulic telescopic outriggers

Span: Extend up to 7 meters (23 ft) per side

Pads: Steel or rubber pads, adjustable for uneven terrain

Hydraulics: 2-3 cylinders per outrigger

Load Capacity: Designed to support crane load for safe operation at maximum capacity

Rotational and Slewing System

Slewing Bearing:

Diameter: ~2.5 meters (8.2 ft)

Material: High-strength alloy steel

Torque: Up to 2000 kNm (approximate)

Rotation Motor: Hydraulic motor providing smooth 360° rotation

More information

Year of manufacture: 2006

Drive: Wheel

Make of bodywork: GROVE RT 530E
