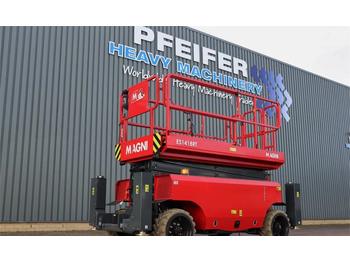

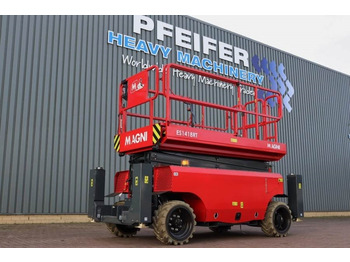

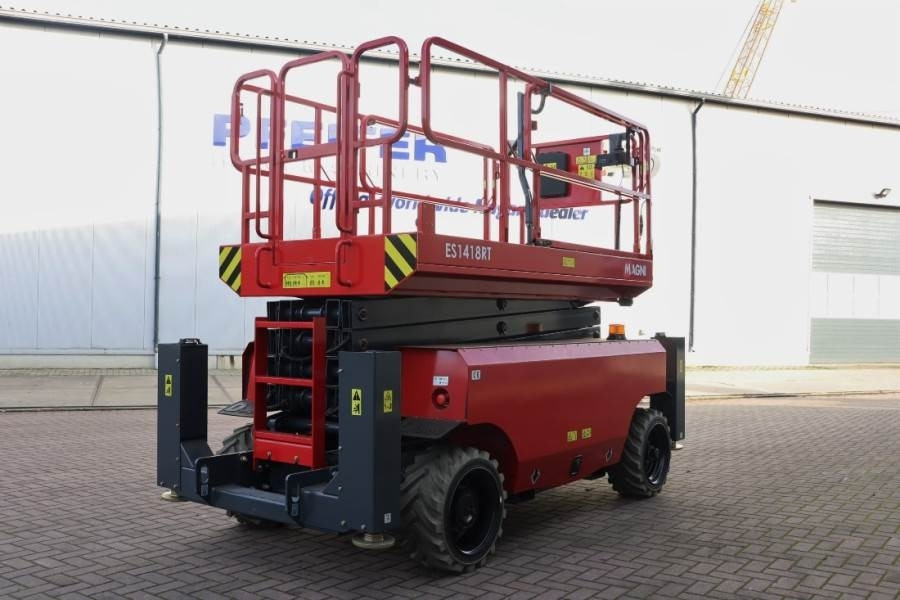

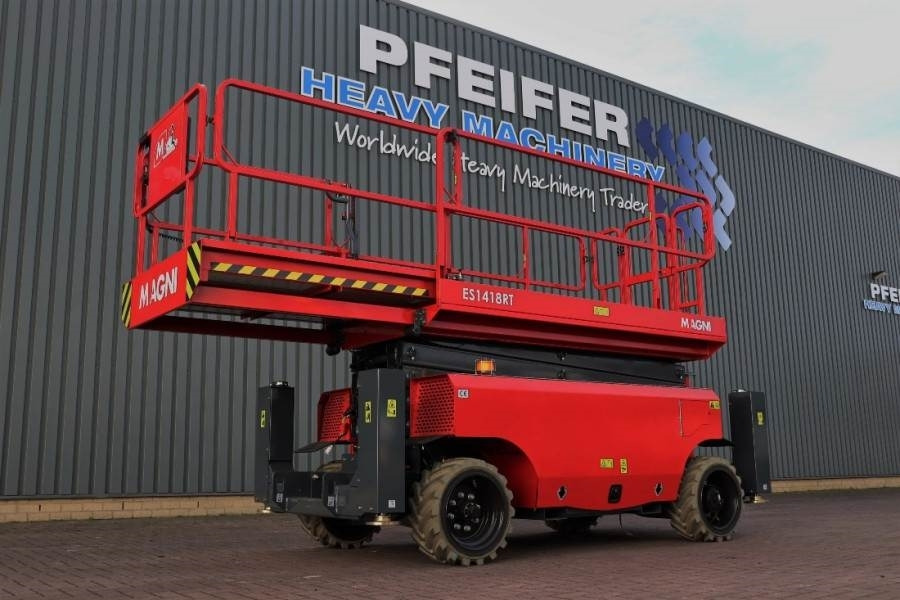

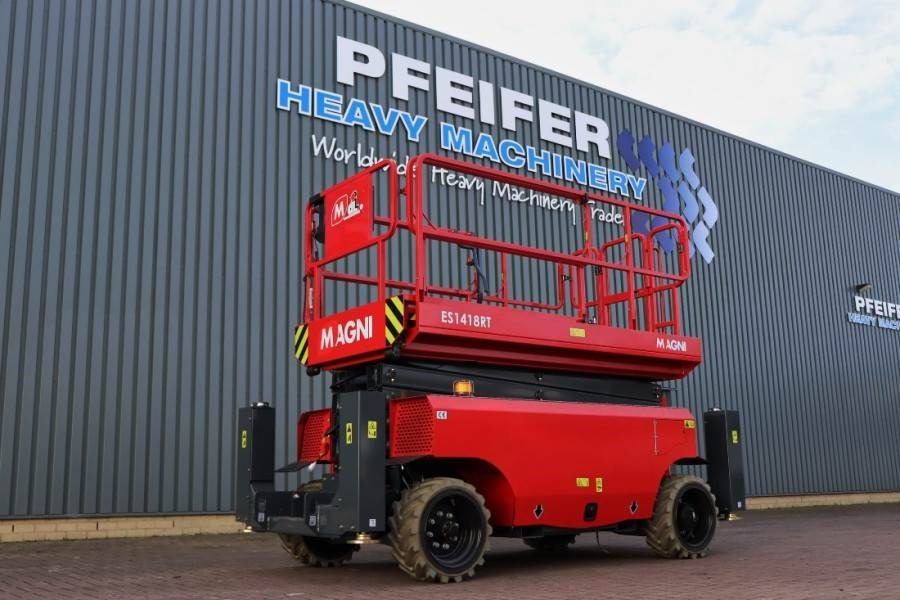

NEW AND AVAILABLE DIRECTLY FROM STOCK MAGNI ES1418RT 14.3M ELECTRIC ROUGH TERRAIN SCISSORLIFT.

This electric scissorlift has a valid inspection and can be sold with warranty. Inform about our conditions!

This 14m electric scissor lift is also available for rent!

Manufacturer: Magni

Typ: ES1418RT

Fuel: Electric

Serial number: MC201105-94

Load Capacity: 363 kg

Load Capacity when extended: 136 kg

Max no. Occupants (Indoor/outdoor): 3

Working height: 14,3 m

Platform floor level height: 12,3 m

Overall length (with stabilizers): 3,84 m

Overall width: 1,76 m

Overall height (rails up): 2,74 m

Transport height (rails down): 1,97 m

Platform dimensions (length /width): 2,88x1,52 m

Platform extension: 1,43 m

Ground clearance: 24 cm

Wheelbase: 2,29 m

Turning radius (inside): 2,15 m

Turning radius (outside): 4,85 m

Gradeability: 40%

Max. working slope: 1,5°/3°

Travel speed (stowed): 6 km/h

Travel speed (raised): 0,48 km/h

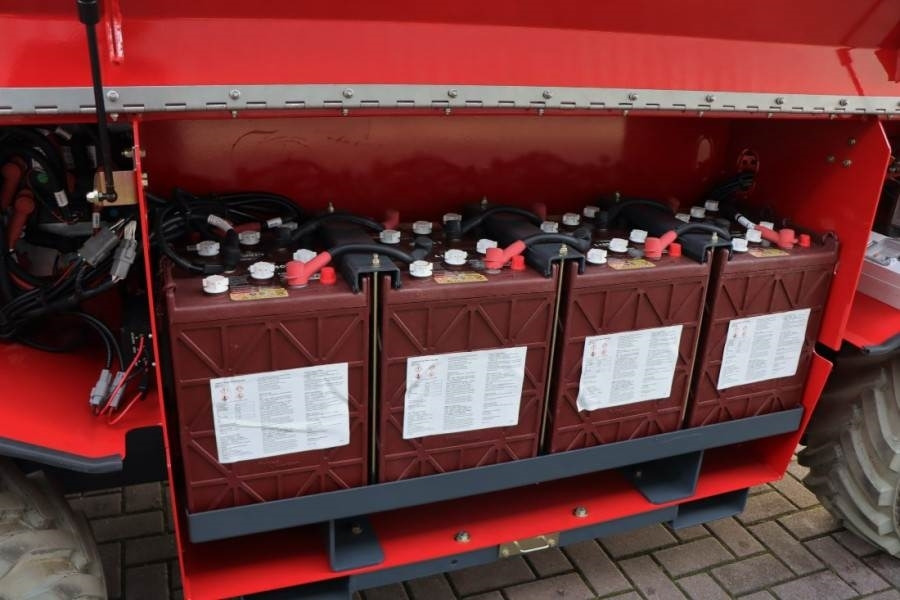

Batteries: 8x6 V / 315 Ah

Integrated battery charger: 48 V / 25 A

Hydraulic tank: 71 l

Tyres: 26x12-16,5

Weight (with outriggers): 5.150 kg

Transport size LxWxH:

2.48 x 1.15 x 1.78 m

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
