Uus Betoonitehas FABO mobile concrete batching plant

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

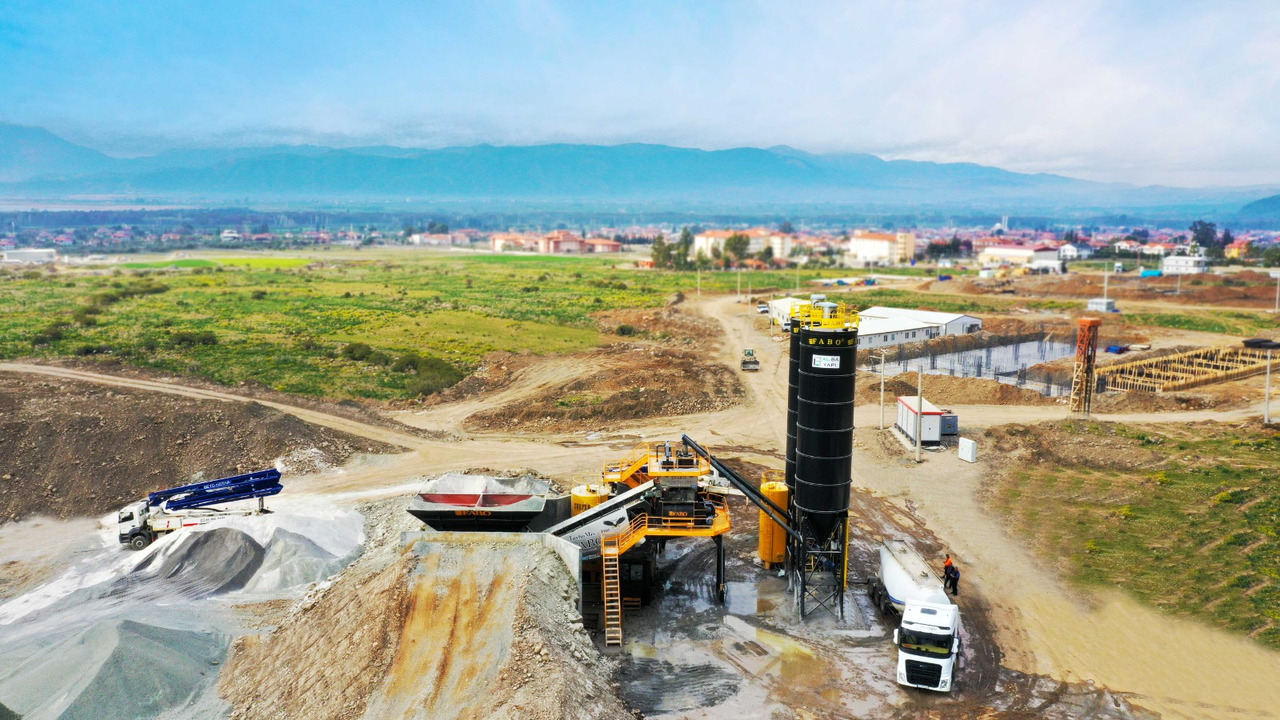

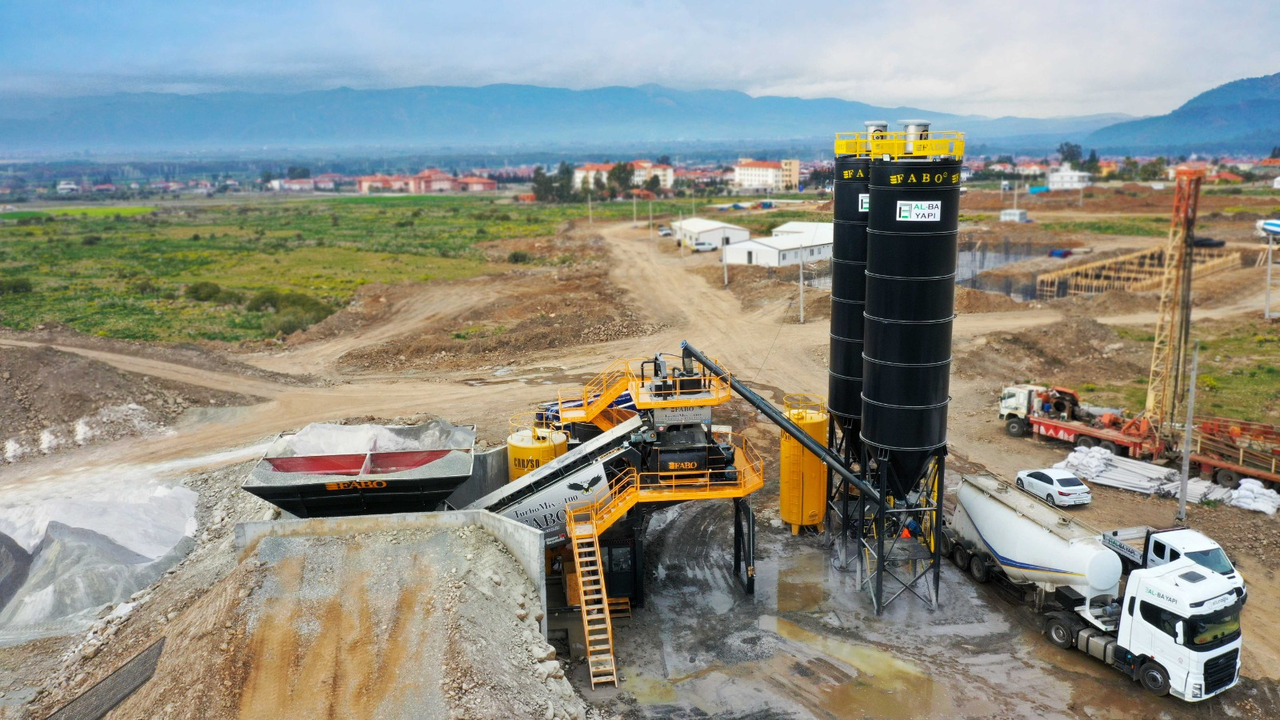

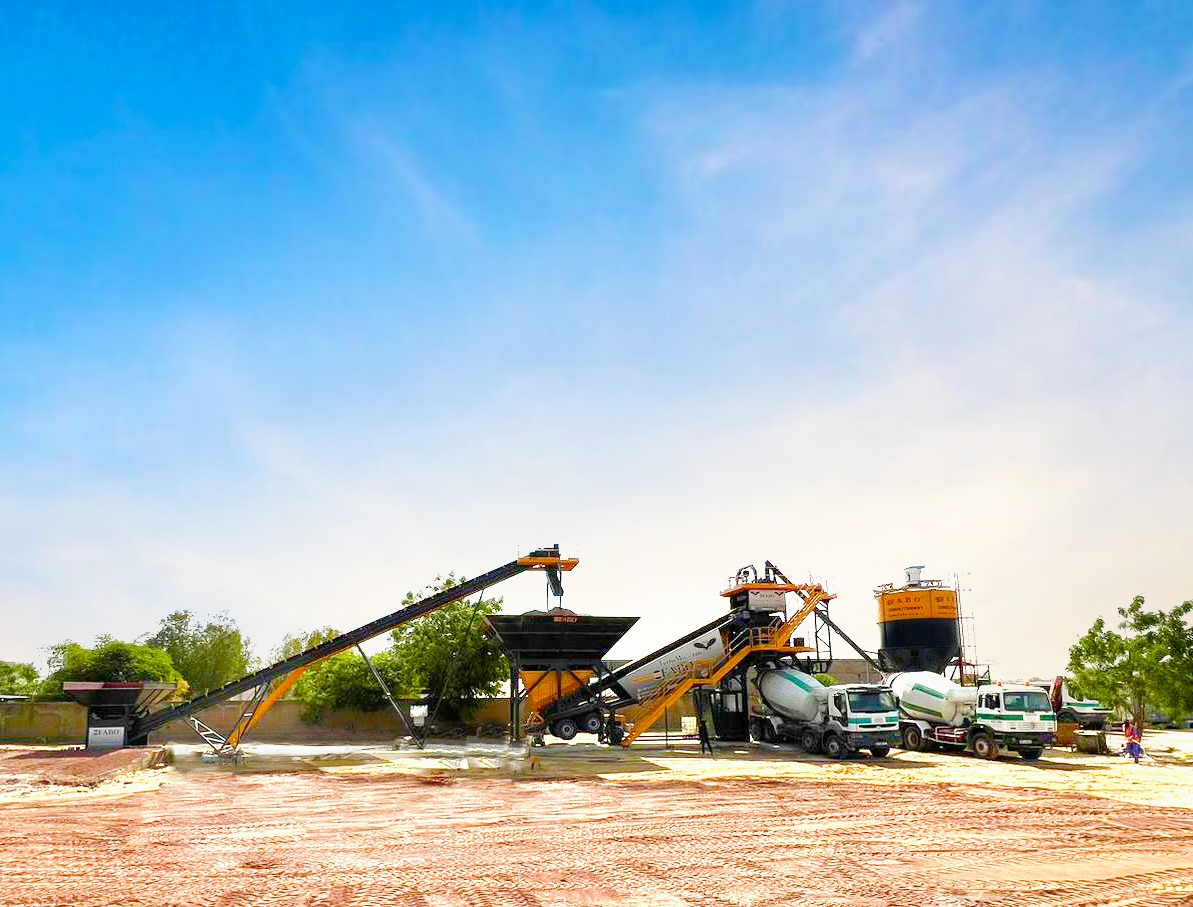

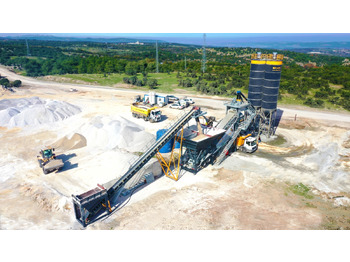

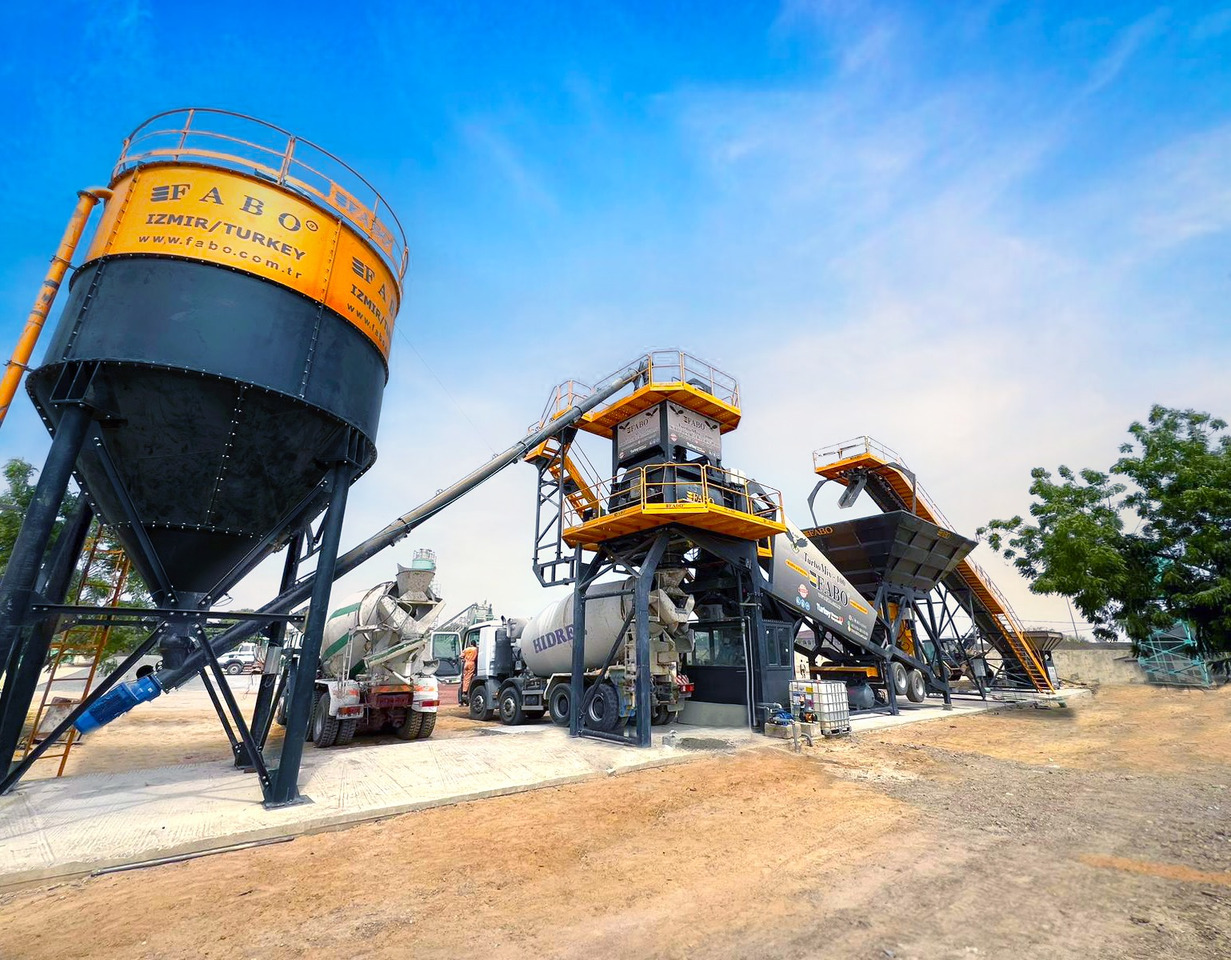

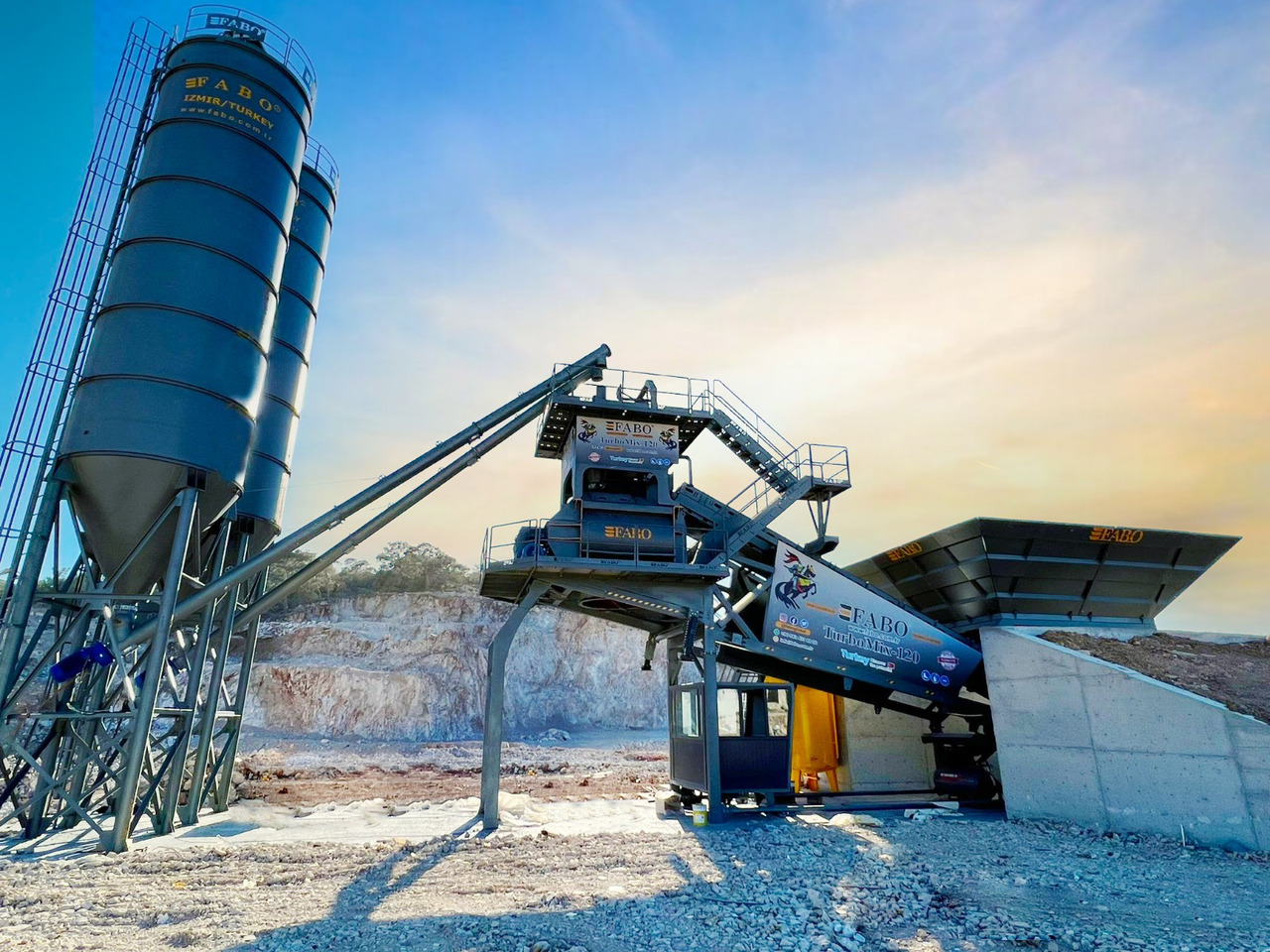

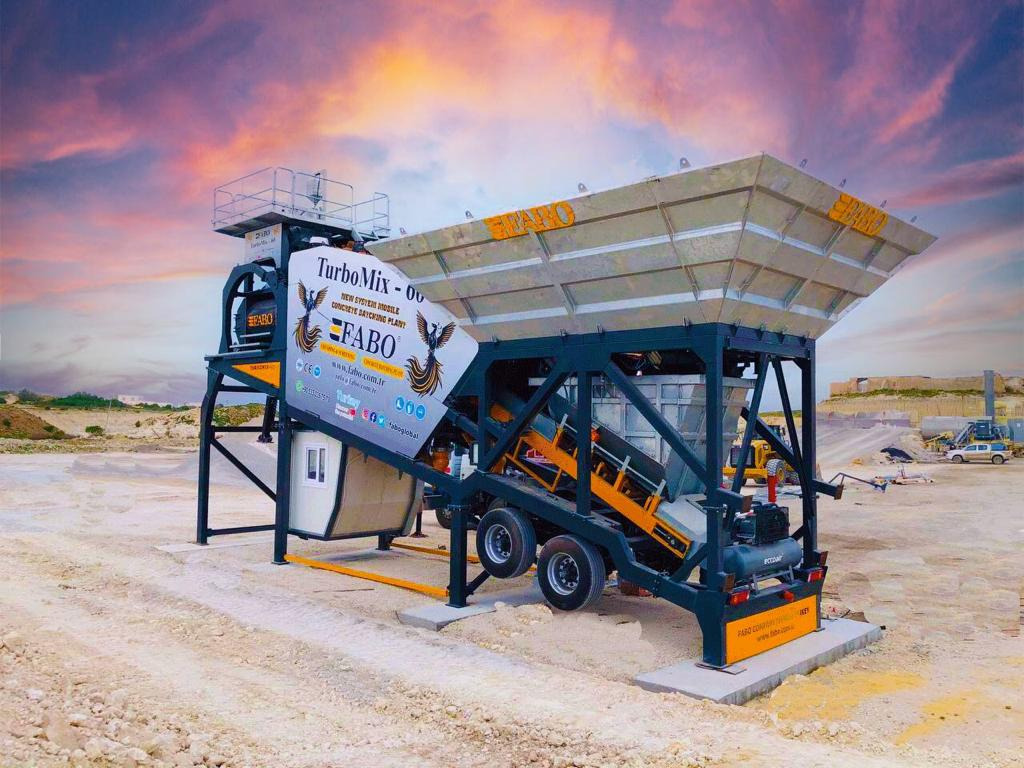

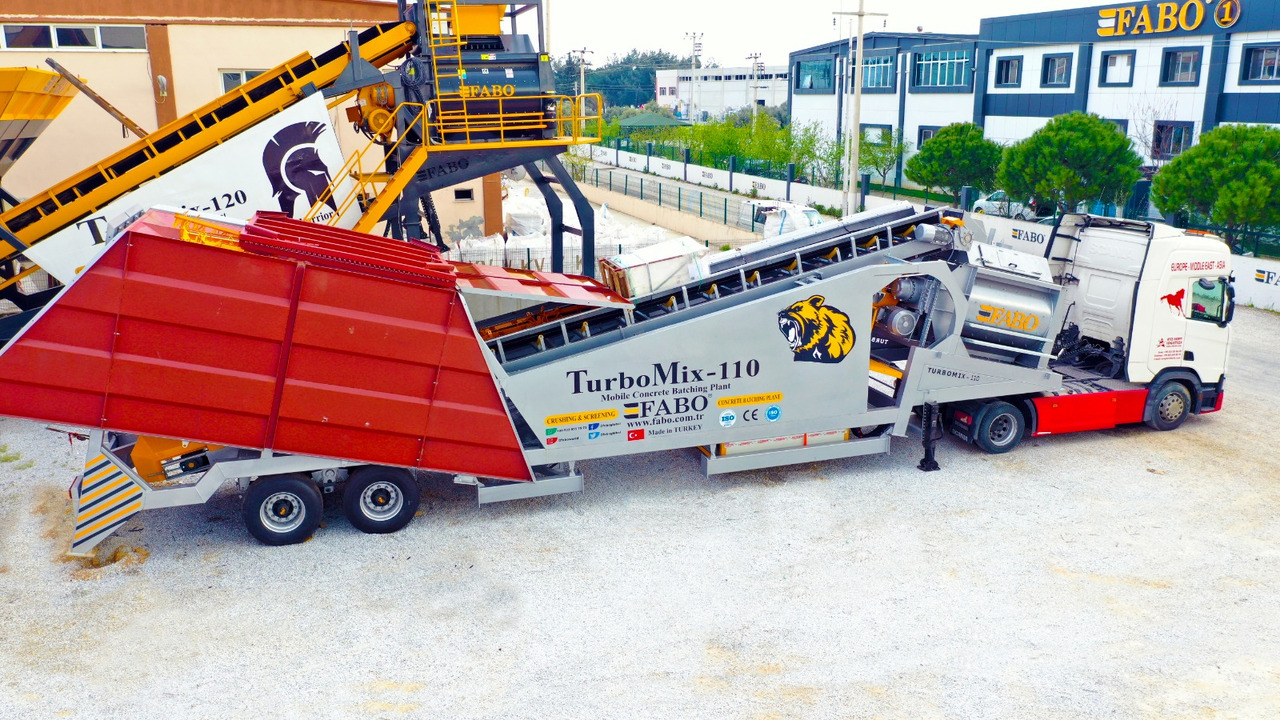

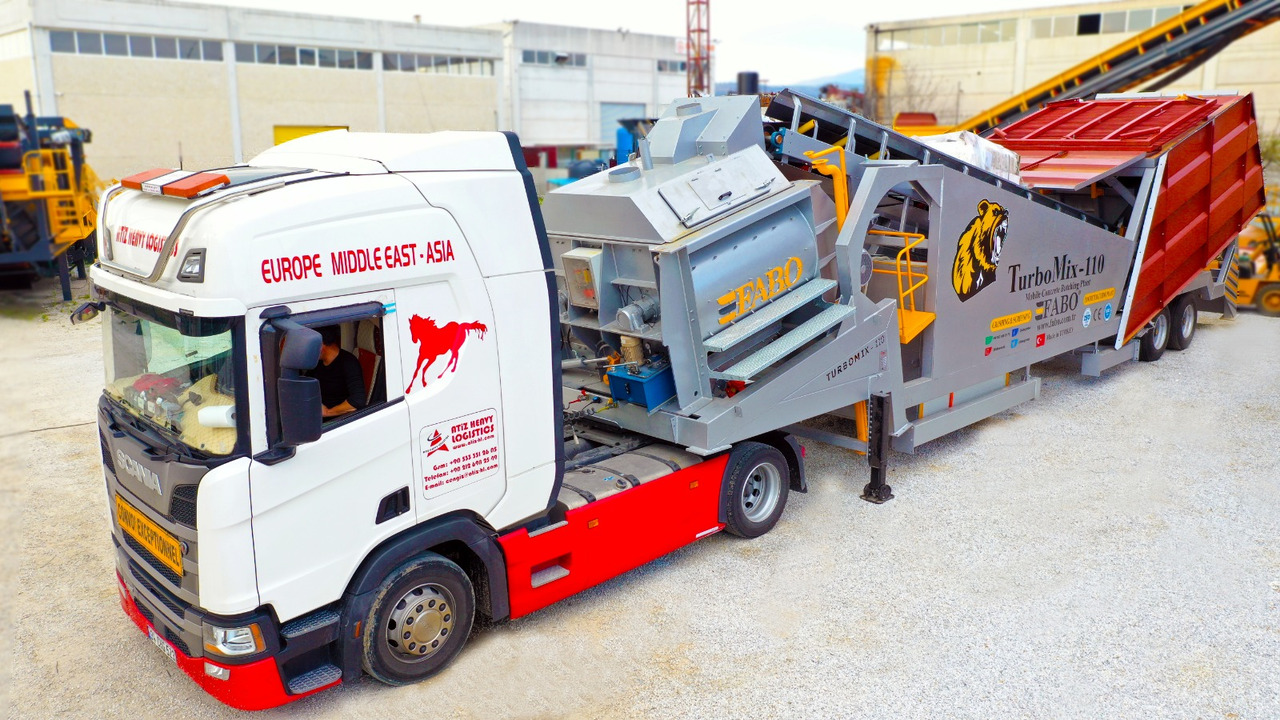

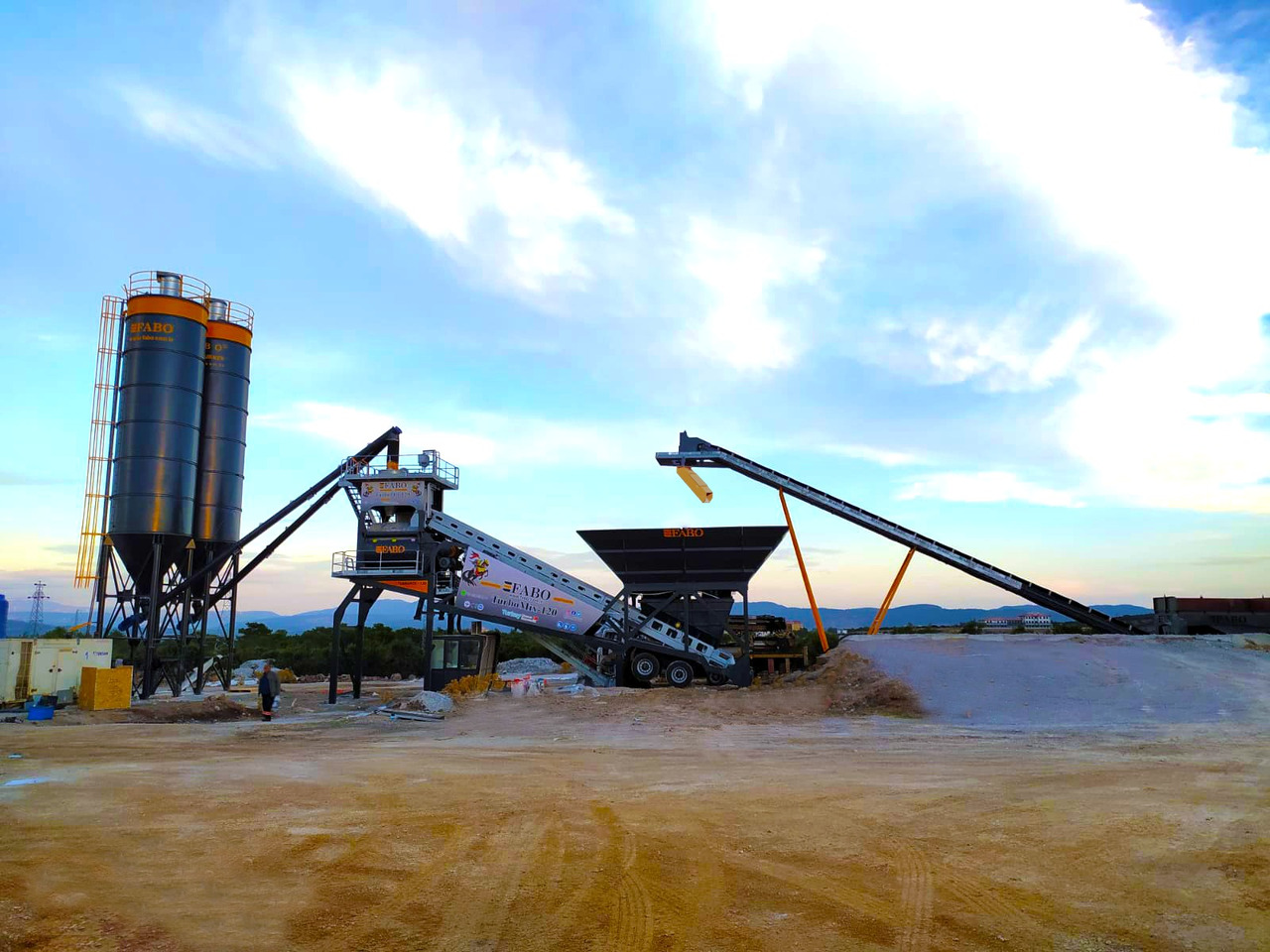

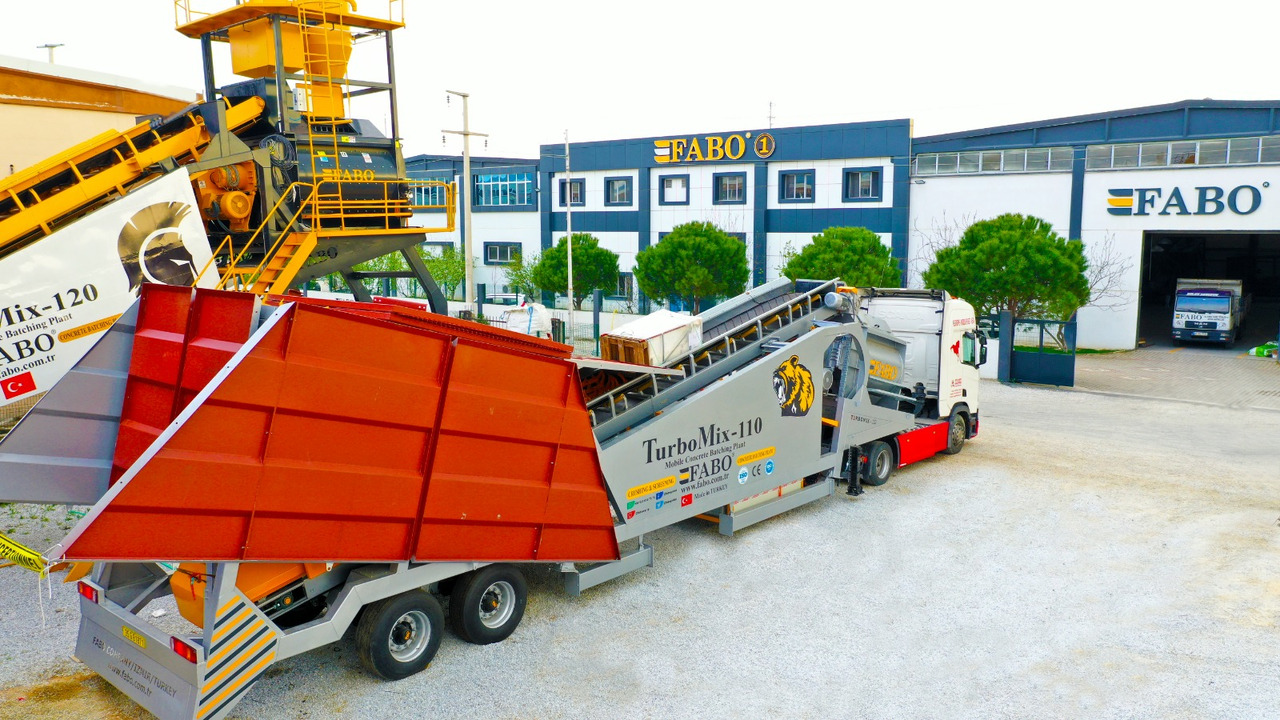

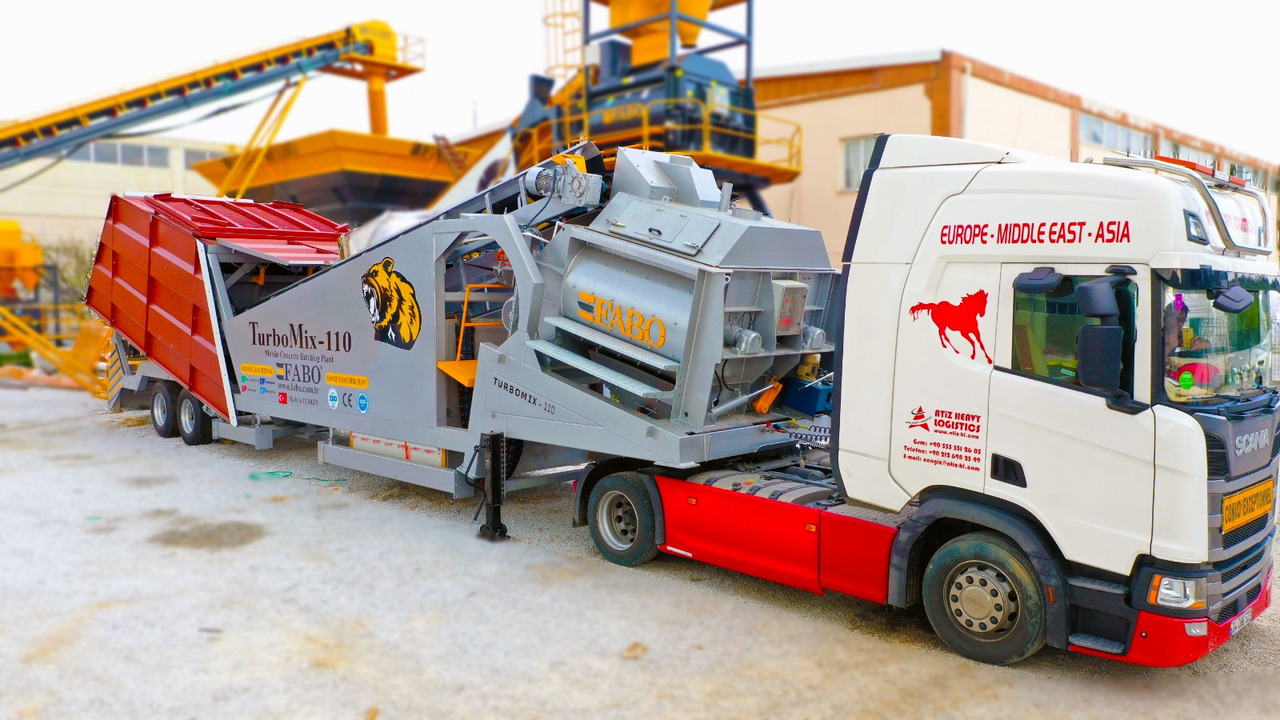

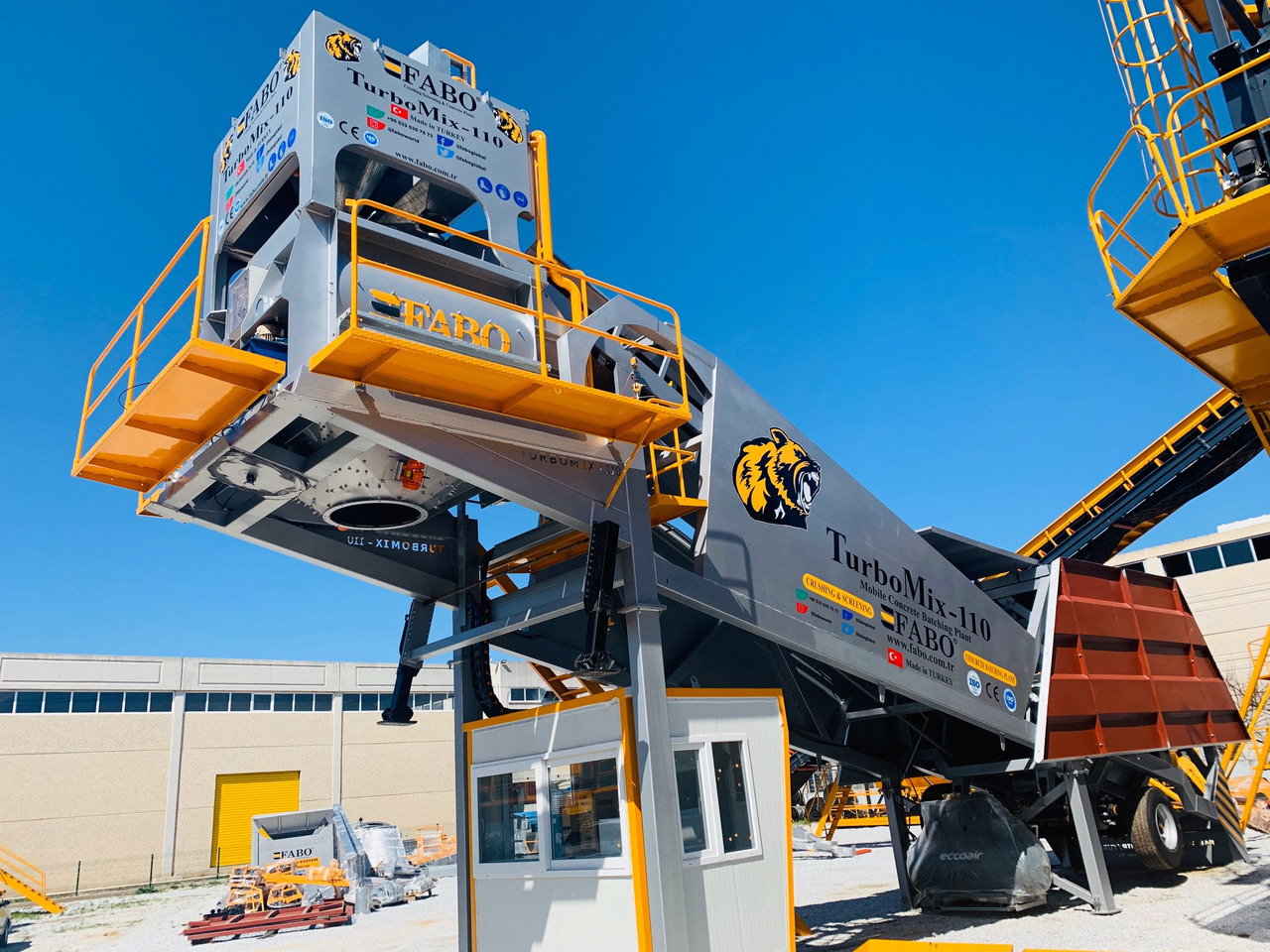

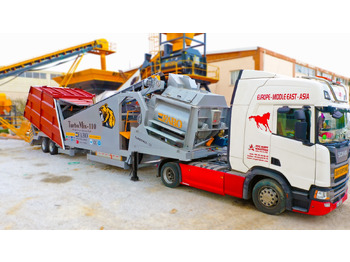

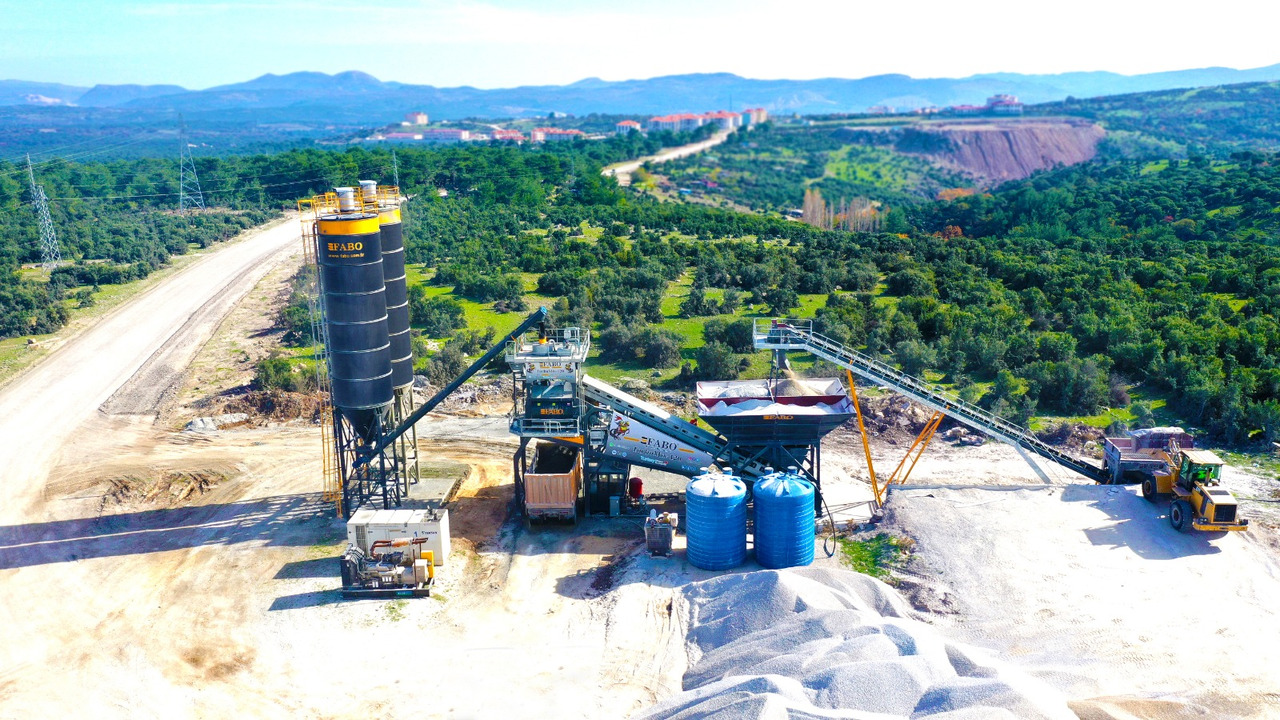

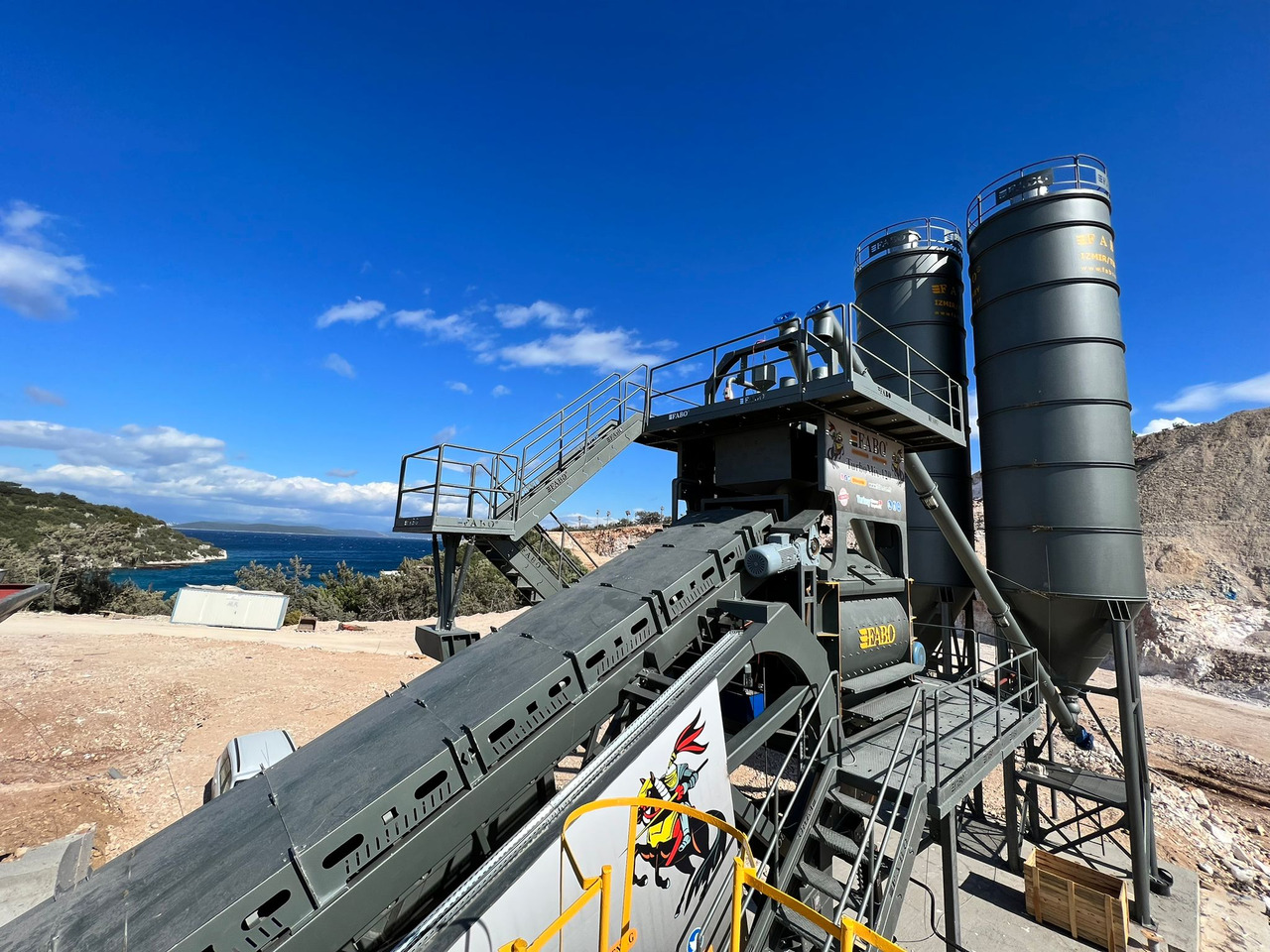

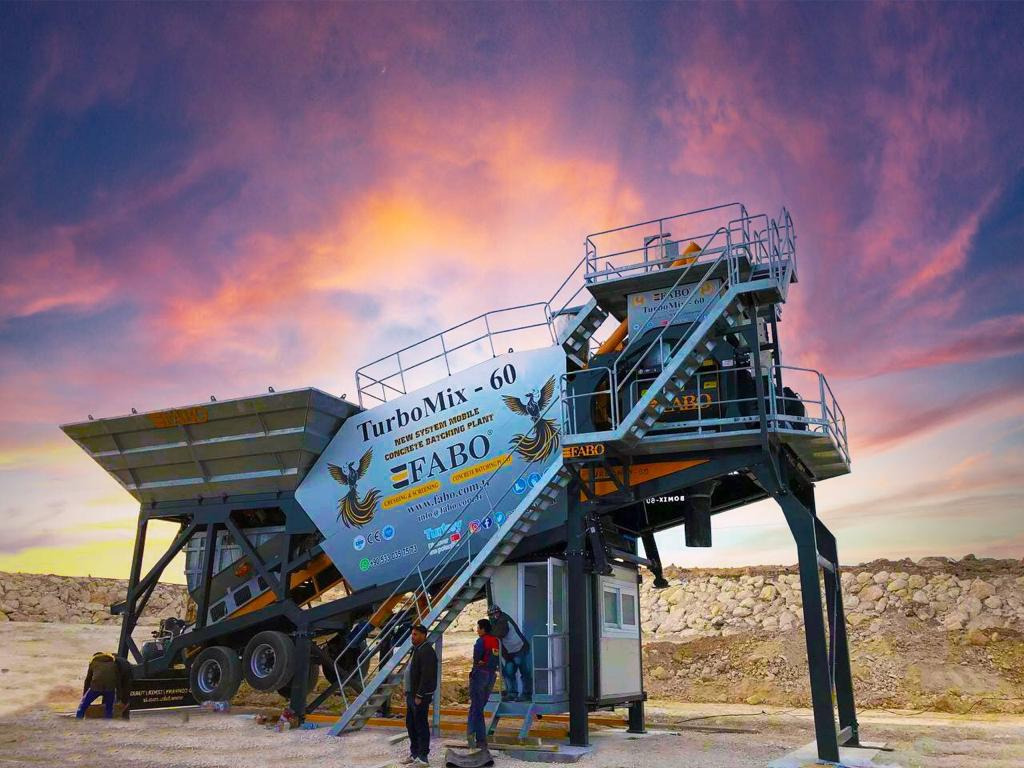

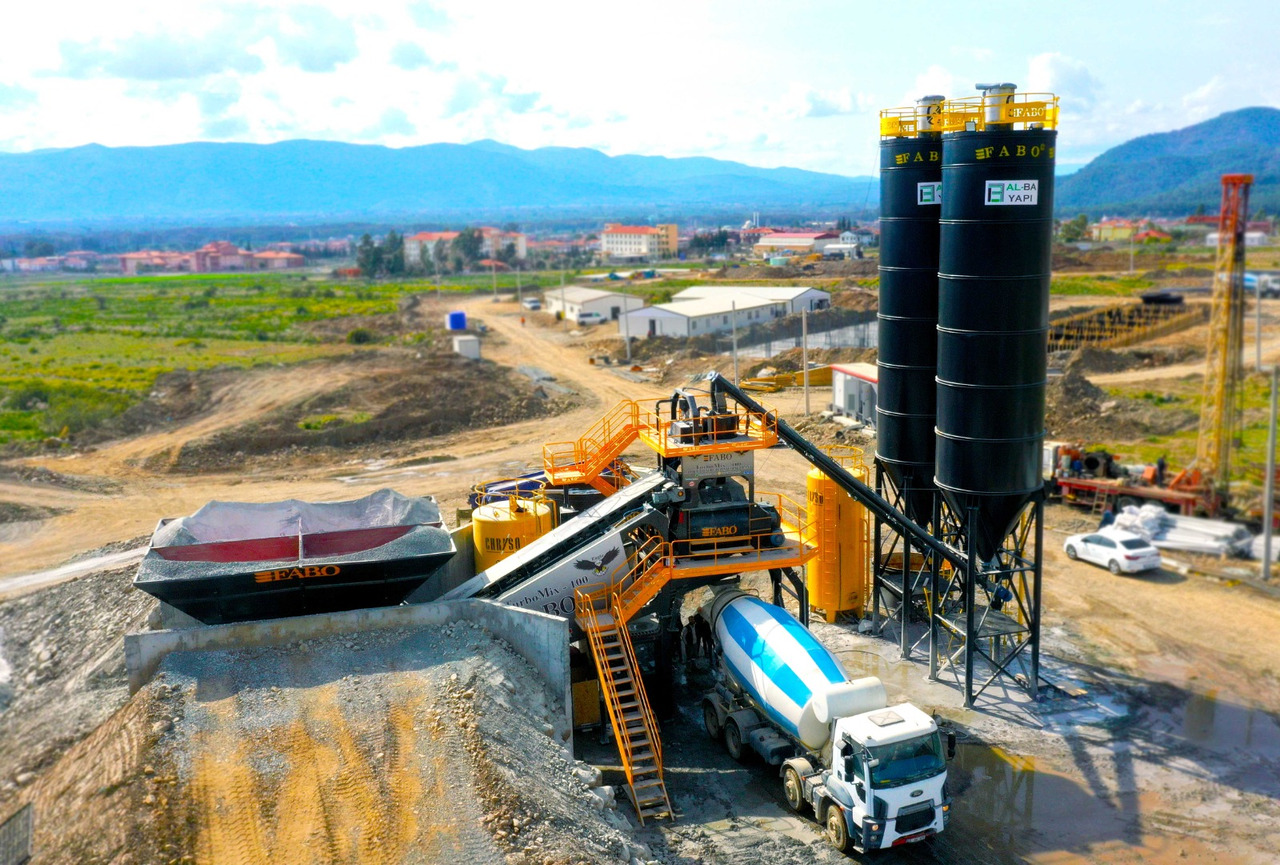

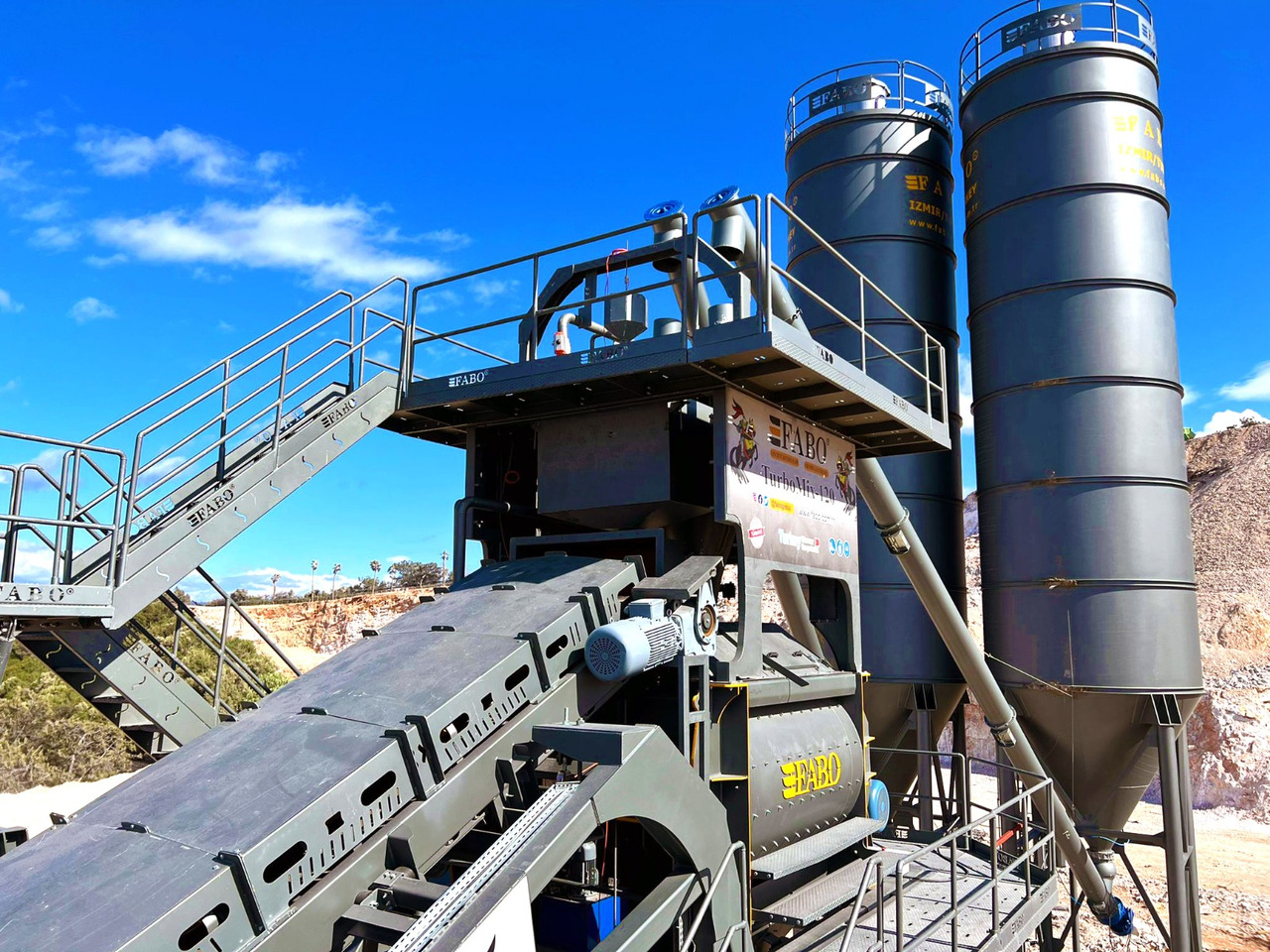

FABO TURBOMIX FULL AUTOMATIC MOBILE CONCRETE BATCHING PLANTS are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h.

FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture.

TECHNICAL SPECIFICATIONS:

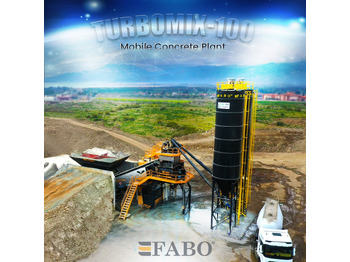

Model: TURBOMIX 100

Production capacity: 100 m3

Dimensions (length x width x height): 16300 x 3200 x 4500 mm

Mixer type: Twinshaft – 2.3 m3

Aggregate bunker: 4x15 m3

Transfer conveyor: 6250 kg

Cement weighing: 1000 kg

Additives weighing: 40 kg

Water weighing: 700 lt

Total weight: 27550 kg

Total motor power: 105 kW

Cement silo is optional.

Turbomix 100 consists of:

• Aggregate Storage Hopper

• Aggregate Weighing Hopper

• Aggregate Transfer Conveyor

• Twinshaft Mixer

• Mixer Chassis, Walking Platforms, Ladder

• Water Weighing Hopper

• Cement Weighing Hopper

• Admixture Weighing Hopper

• Air Compressor

• Cement Screw Conveyor

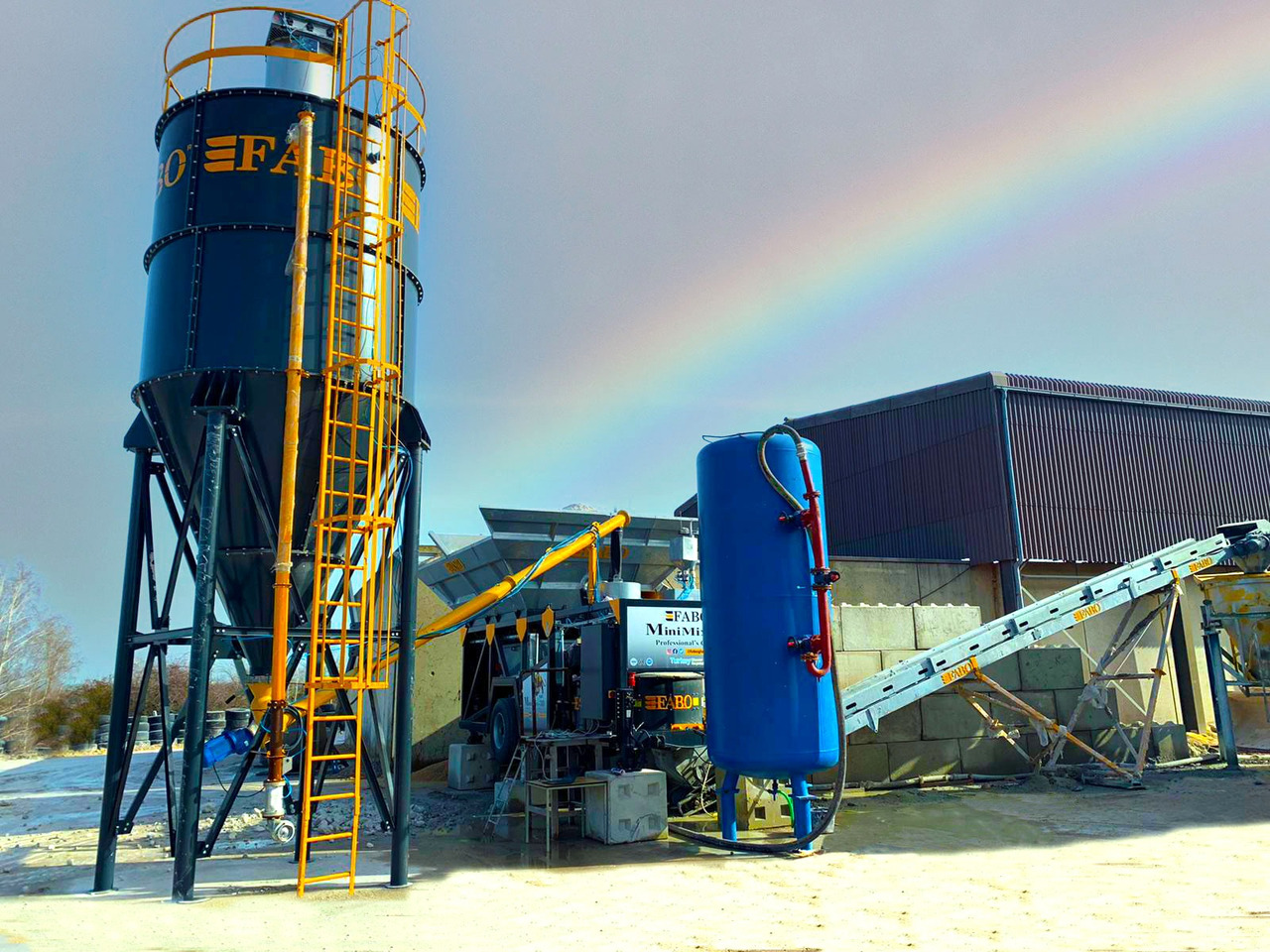

• Bolted Cement Silo

• Top Filter, Safety Valve and Accessories

• Control Cabinnet

• PC and Automation System

• Control and Power Panel

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
